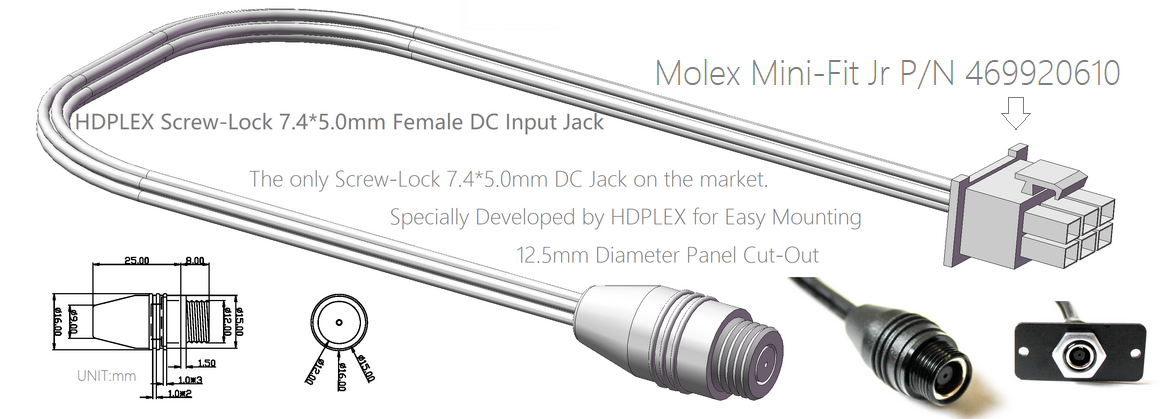

Screw-Lock 7.4*5.0mm Female DC Jack Specially Designed by HDPLEX For Easy Mounting

HDPLEX 200W DC-ATX Converter

Out of stock

HDPLEX 200W DC-ATX

$78.50

HDPLEX 200W DC-ATX Enjoys Free Shipping for US/UK/DE

Price is 78.50USD

Stock Status USA : Sold Out Germany : Sold Out Asia : Sold Out

Have Question About this Product?

HDPLEX 200W DC-ATX Enjoys Free Shipping For US/UK/DE

Stock Status USA : Sold Out Germany : Sold Out

Technical Specifications

Wattage: 200W (220W Peak), >94% Efficiency

Feature

12V-48V wide range voltage input support, 8 layer DUAL Level copper PCB!

The only Direct Plug DC-ATX with PCIExpress Rail 6+2PIN, supporting GTX950/GTX1050

The only Direct Plug DC-ATX with dual aluminum heatsink for 24/7 robust operation

Top Quality German Würth Elektronik Inductance

CPU 12V+PCIExpress 12V Support 15A with 20A Peak

5V SYNC Output via PS-GOOD Rail Supported

Operating Temperature: -10°C to 70°C

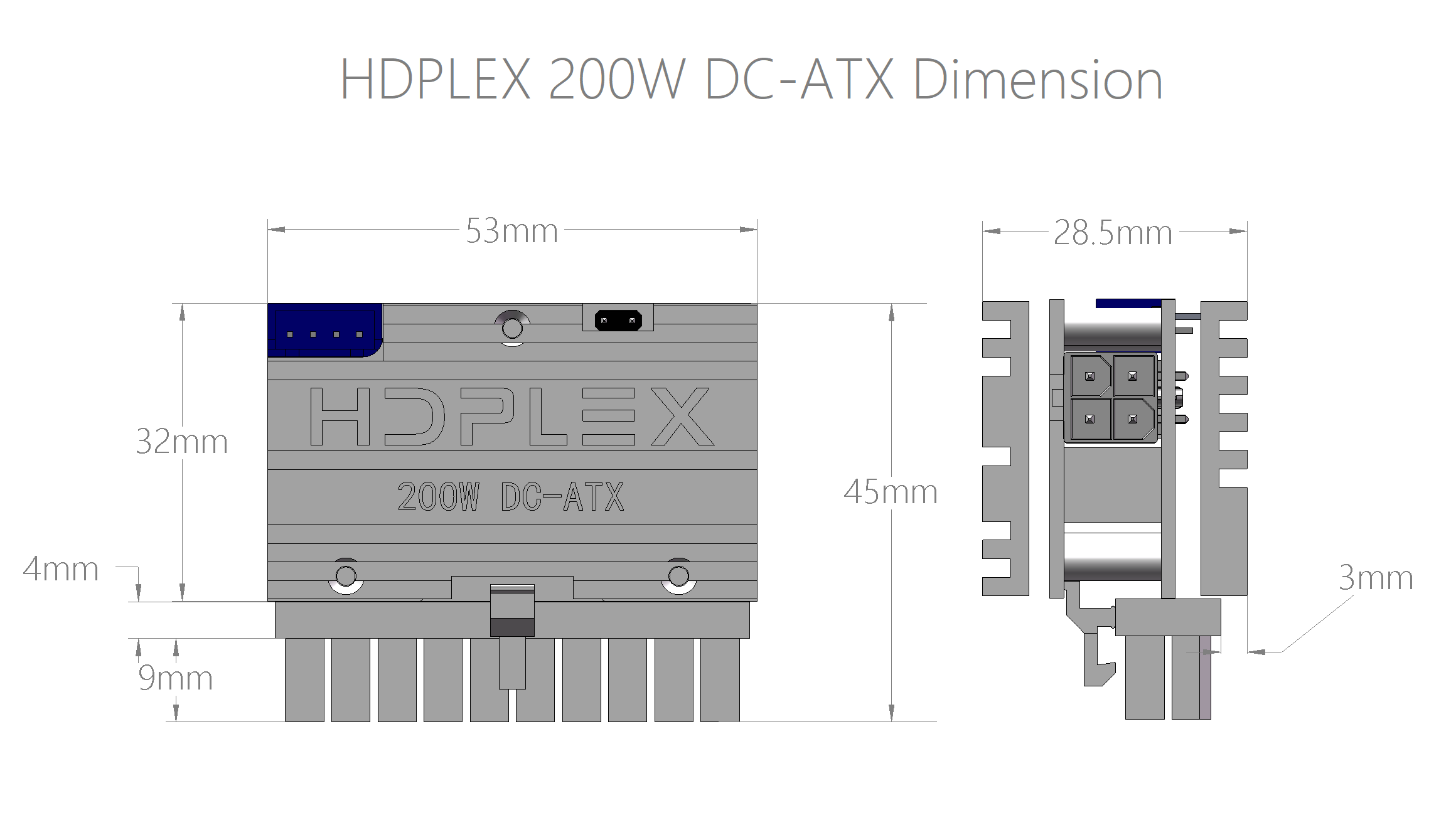

Size: 45(H) x 53(W) x 28.5(D) mm, 3D Engineering File Download（STP Format)

Input Voltage: 12V-48V DC

Input Connector: 7.4x5.0mm w/center PIN,40cm Input Cable with 6PIN Molex Female

Output Connector:

4+4PIN CPU EPS12V Cable (40cm)*1(Detachable),6+2PIN PCIExpress Cable (40cm)*1(Detachable), SATA Power Cable with 2*SATA Connector (40cm)

Key Specification:

Output Voltage

Max DC Current

Full Load DC Current

Output Voltage Tolerance

Ripple Noise
(mVp-p,MAX)

+3.3V	7A	5A	1%	50mV
+5V	10A	7A	1%	60mV
+12V	20A	15A	1%	70mV
+5VSB	3A	0.5A	3%	30mV

Hardware Compatibility

Compatible 19V laptop adapters for HDPLEX 200W DC-ATX Power Supply (not all are listed):

Dell: PA19,PA10, PA-3E, 9T215, 310-3399, UC473, 7W104, 5U092, 2H098, 450-10471.

ASUS: PA-1121-28, ADP-120ZB BB, 04G266010800, 04G266006120.

Toshiba: PA3516U-1ACA, PA3717U-1ACA, PA3290U-3ACA, PA3717E-1AC3.

HP: PPP012H, 609940-001, 391173-001, 463955-001.

Package Content

1 x HDPLEX 200W DC-ATX Converter (12V-48V wide range voltage)

1x Molex 4PIN-4+4PIN(4+4) CPU ESP12V Cable (40cm)

1x Molex 4PIN-6+2PIN PCIExpress Cable (40cm)

1x XH4P to SATA Cable with 2 SATA Power Connector (40cm)

1 x 6PIN-7.4x5.0mm with Center PIN DC input connector (40cm)

HDPLEX 200W DC-ATX Converter

2 X M2*6 Screw
