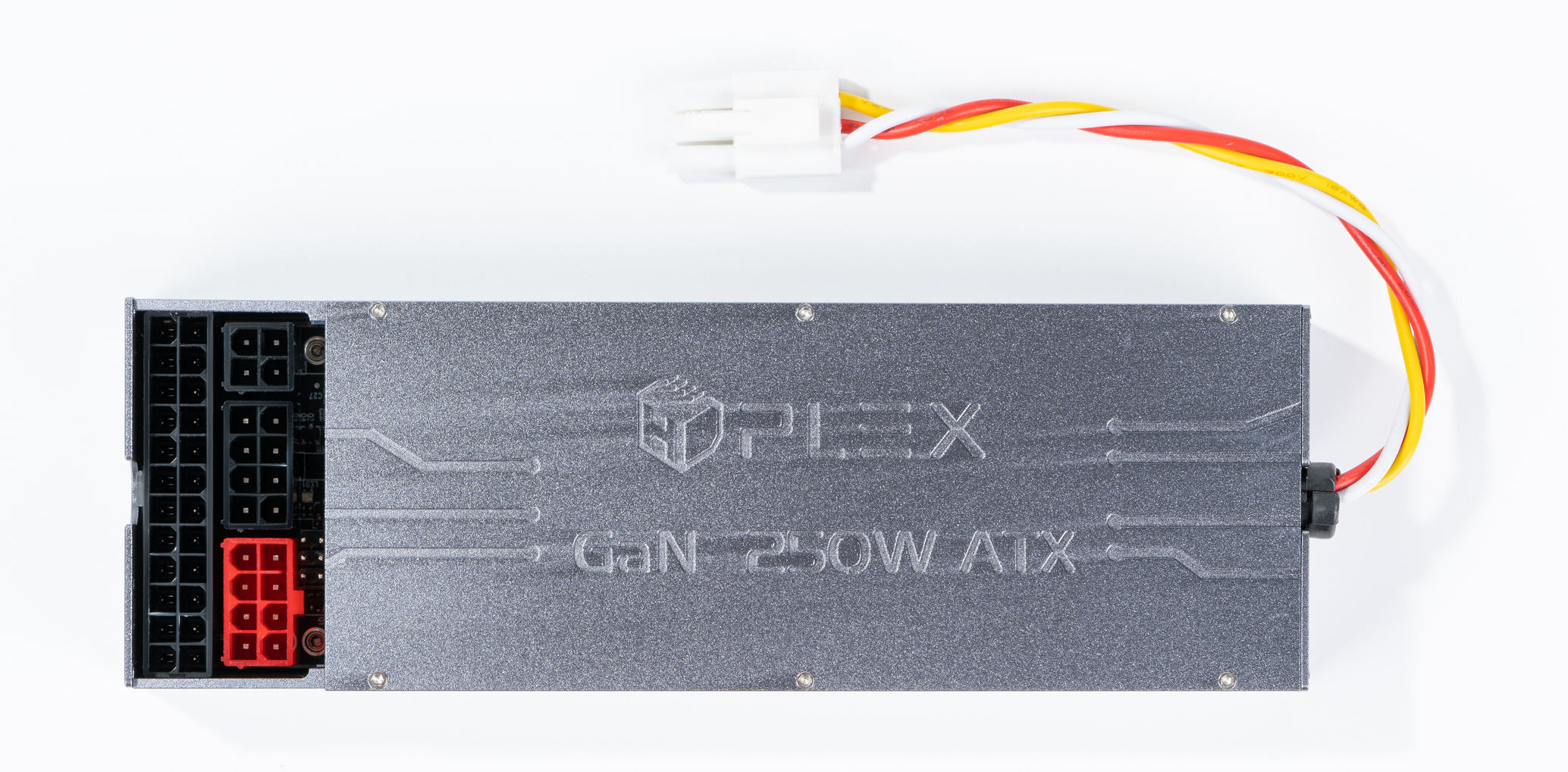

HDPLEX 250W GaN Passive AIO ATX Power Supply
The HDPLEX 250W passive GaN AIO(All-In-One) ATX Power Supply is the world smallest ATX PSU using cutting-edge GaN (GALLIUM NITRIDE) Technology.

The HDPLEX 250W GaN ATX PSU is fully passive and with 170*55*25mm tiny foot print as well as super slim profile. It would be a prefect match for SFF PC case.

The HDPLEX 250W GaN ATX PSU has full aluminum alloy body which could quickly dissipate heat. This enable HDPLEX 250W GaN ATX PSU's robust zero noise operation under full load which is a highly desired feature for Home Theather/Recording Lab.

The HDPLEX 250W GaN ATX PSU has achieved 1.18W/cm³ super high power density, effectively breaking 1W/cm³ barrier thanks to its cutting edge GaN chip and highly efficient LLC+PFC structure.

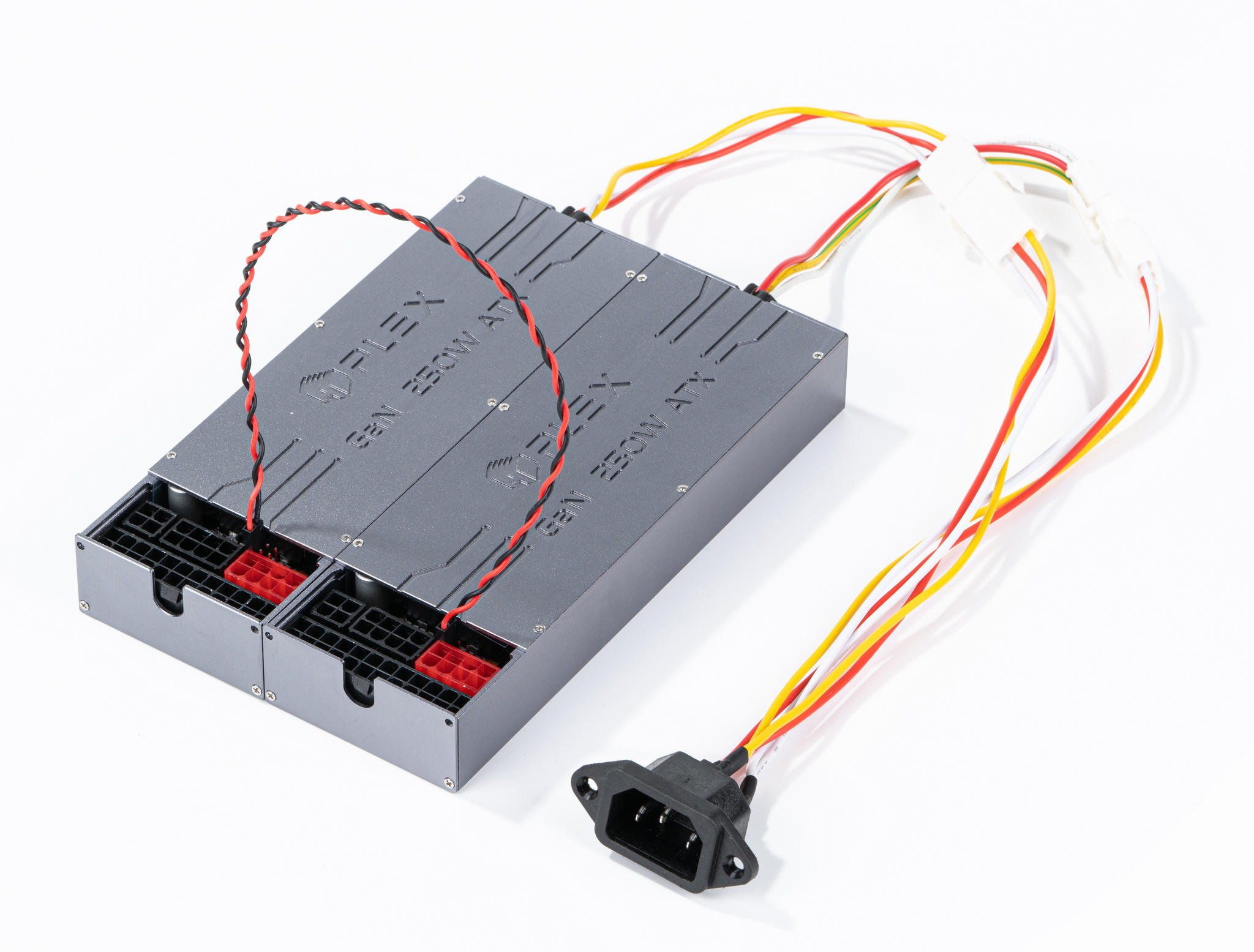

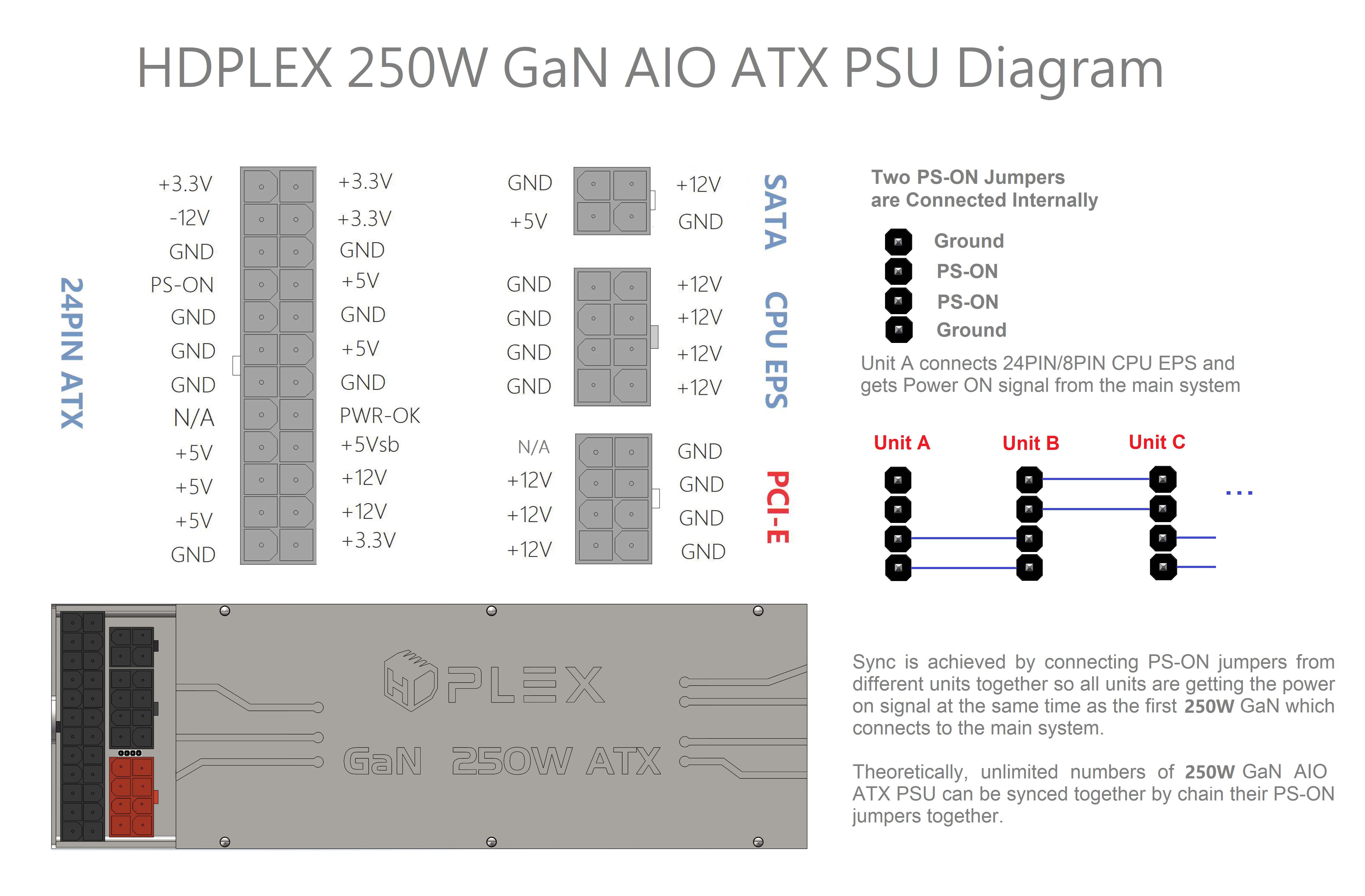

The HDPLEX 250W GaN ATX PSU not only supports modular ATX output but supports sync with a second HDPLEX 250W GaN ATX PSU via a sync cable (included in the package). Two HDPLEX 250W GaN ATX power supplies synced together can form a powerful yet fully passive 500W ATX PSU. One can power the motherboard and CPU while the second one could power the GPU card.

HDPLEX 250W GaN ATX PSU uses advanced PFC+LLC structure, achieve 94% efficiency at full load while satisfy Level V Energy Efficiency standard. The PFC stage utlizes two automotive-grade GaN FET and LLC stage also utlizes two automotive-grade GaN FET. HDPLEX 250W GaN uses four ATX 1KV 8A TTR8MF chips for full-wave rectification and guarantee stable current for the output stage. 1% Resistor to ensure no deviation for every key point in the chain .

HDPLEX 250W GaN ATX PSU features unibody flat transformer which has outstanding consistency and eliminates noise caused by vibration. Four layer 2oz copper PCB best for high current application while also quickly disspate heat from GaN FET. Both 150µF Rubycon filter CAP and 9000µF Solid Cap have super long life span. Three stage AC filter circuit (2 LC+1 CLC) eliminates interference from power grid.

HDPLEX 250W GaN ATX PSU offers three groups of back mounting holes. The spacing 122.3cm*43.3cm is the same as HDPLEX 400W DCATX. The spacing 144cm*33.3cm is the same as HDPLEX 200W ACDC and HDPLEX 400W ACDC. SFF case supports HDPLEX 400W DC-ATX or 200W/400W ACDC mounting automatically supports HDPLEX 250W GaN ATX mounting.

HDPLEX 250W GaN ATX PSU offers one group of front mounting holes via extra front mounting plate (included).

In stock

HDPLEX 250W GaN Passive AIO ATX Power Supply

Free Shipping Worldwide
Stock Status
USA : In stock
Germany : Sold Out ETA June 24th
ASIA : In Stock
UK : In Stock
Australia : In Stock
Free Shipping Worldwide
Stock Status USA : In Stock Germany : Sold Out
Technical Specifications

Wattage: 250W (94% Efficiency).

Input Voltage: 90V-264V 50/60hz

Idle Power: <0.4W/0.1W


GaN All-In-One ATX Power Supply

Smallest ATX PSU in the World!

Fully Passive and Fanless, Zero db Operation

PFC+LLC Structure, Level 5 Energy Efficiency

Two Auto Grade GaN FETs on PFC Stage and Two on LLC Stage

1.18W/cm³ Super High Power Density

Support Sync with a Second Unit

Aluminum shell casing working with HDPLEX fanless PC chassis to dissipate heat

Fanless and 100% Silent

4 Layer 2oz Copper PCB for high current and fast heat disspation

Three Stage AC Input Filter Eliminate Grid Noise

Unibody Flat transformer eliminates noise caused by vibration.

High Precision 1% Resistor

Four ATX 1KV 8A TTR8MF Full-wave Rectification

150µF Rubycon filter CAP and 9000µF Solid Cap


Fully Modular ATX Output

Detachable C14 IEC Connector:flexible to support other AC input for custom project

Size: 170(D) x 55 (W) x 25 (H) mm, Weight: 360 gram/13 oz,

HDPLEX 250W GaN AIO ATX PSU 3D Engineer Drawing (STP) Download Here

Operating Temperature: -10°C - 75°C

AC Input 100-240VAC 50/60Hz
DC Output +3.3V +5V +12V -12V +5VSb
MAX Output Current 10A 10A 20A 1A 5A
MAX Combined Power 80W
Total Power 250W


Molex Part Number for HDPLEX 250W GaN

24PIN ATX Connector
Molex PART NUMBER: 462071024 SERIES NUMBER: 46207

4PIN SATA Connector
Molex PART NUMBER: 462071004

8PIN CPU EPS Connector
Molex PART NUMBER: 462071008

8PIN Red PCIE Connector
This part does not have a Molex part number.
The closest Molex Connector would be this but it is not vertical.
Molex PART NUMBER: 455860005 SERIES NUMBER: 45586
HDPLEX part number is CS-1150-08BRT(0091) CAD drawing for this PCIE PCB RED Header download here.

AC Cable Female 3PIN Connector
PART NUMBER: 1726460312

AC Cable Male 3PIN Connector. Color should be Black.
Molex PART NUMBER: 39014030

Package Content

1 x HDPLEX 250W GaN All-In-One ATX PSU

1 x IEC C14 AC- Two Molex Connectors Cable (20cm)

1 x IEC C6 AC- Two Molex Connectors Cable (20cm)

1 x 24PIN (20+4PIN) ATX PSU (25cm)

1 x CPU EPS 8PIN (4+4PIN) Cable (45cm)

1 x PCIE with Red Connector with Dual 8PIN (6+2PIN) Cable (45cm)

1 x SATA Power Cable with Four SATA Power Connector (45cm)

1 x Sync Cable (45cm)

1 x Front Mounting Plate

FlexATX Adapter IS NOT INCLUDED IN 250W GaN package.
